Due to space constraints or when materials are accumulated at large slopes, a raised edge conveyor belt is usually used to prevent the conveyed materials from scattering. It is suitable for conveying materials with large gradients from 0 degrees to 90 degrees. Carcass Material and Strength Belts can be selected according to user requirements, we have the following carcass materials: Cotton (CC), Nylon (NN), Polyester and Nylon (EP).

Features:

1. The material can be conveyed with a large gradient, and the maximum gradient can reach 90 degrees.

2. The belt has a large bearing capacity, and the material will not be scattered.

3. The conveying slope can be changed from horizontal to inclined, or from inclined to horizontal.

4. The conveyor has a simple structure, flexible layout and small footprint.

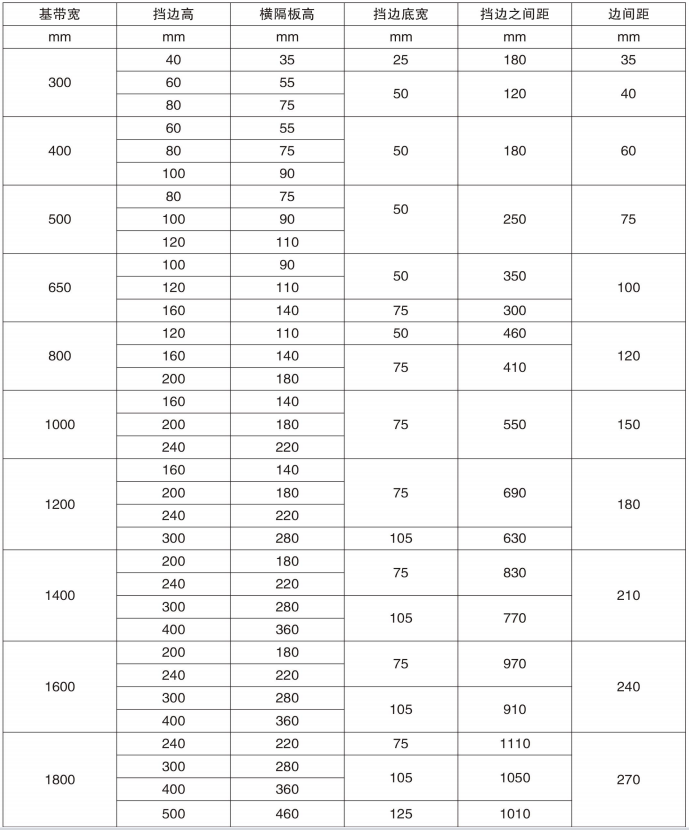

Specifications and technical parameters：
