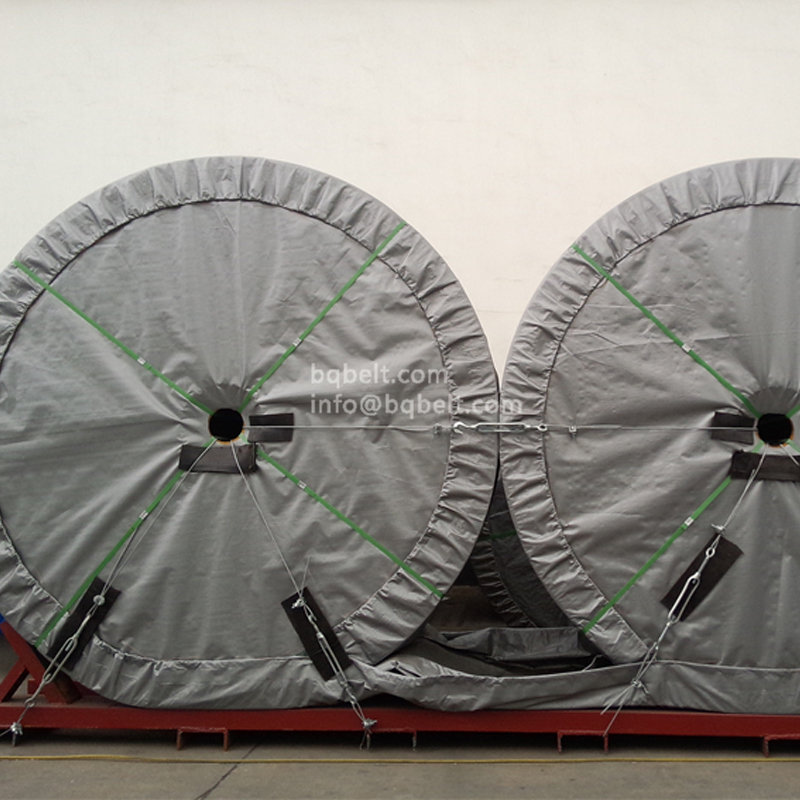

PVC overall core flame retardant conveyor belt

PVC overall core flame retardant conveyor belt


Features:

The belt body does not delaminate, with high strength, small stretch, impact resistance, friction resistance and tear resistance.


Purpose:

Suitable for conveying materials under dry conditions with an inclination angle below 16 degrees.


Technical requirements:

Products can be organized according to MT/T914-2019 and other standards.


Safety Features:

Conveyor belts are self-extinguishing for flame combustion, have excellent flame retardant properties, and have good antistatic properties.


Product type

Tensile strength (minimum)

Radial(N/mm)

Weft(N/mm)

680S/Level 4

680

265

800S/Level 5

800

280

1000S/Level 6

1000

300

1250S/Level 7

1250

350

1400S/Level 8

1400

350

1600S/Level 9

1600

400

1800S/Level 10

1800

400

2000S/Level 11

2000

400

2240S/Level 12

2240

450

2500S/Level 13

2500

450


Minimum roller diameter selection (for reference only)

Standard selection

Recommended Minimum Window Roller Diameter

680S/Level 4

500

800S/Level 5

630

1000S/Level 6

630

1250S/Level 7

800

1400S/Level 8

800

1600S/Level 9

1000

1800S/Level 10

1000

2000S/ Level 11

1250

2240S/ Level 12

1250

2500S/Level 13

1400
