High temperature conveyor belt - Qingdao BQ Rubber Co., Ltd.

Product catalog

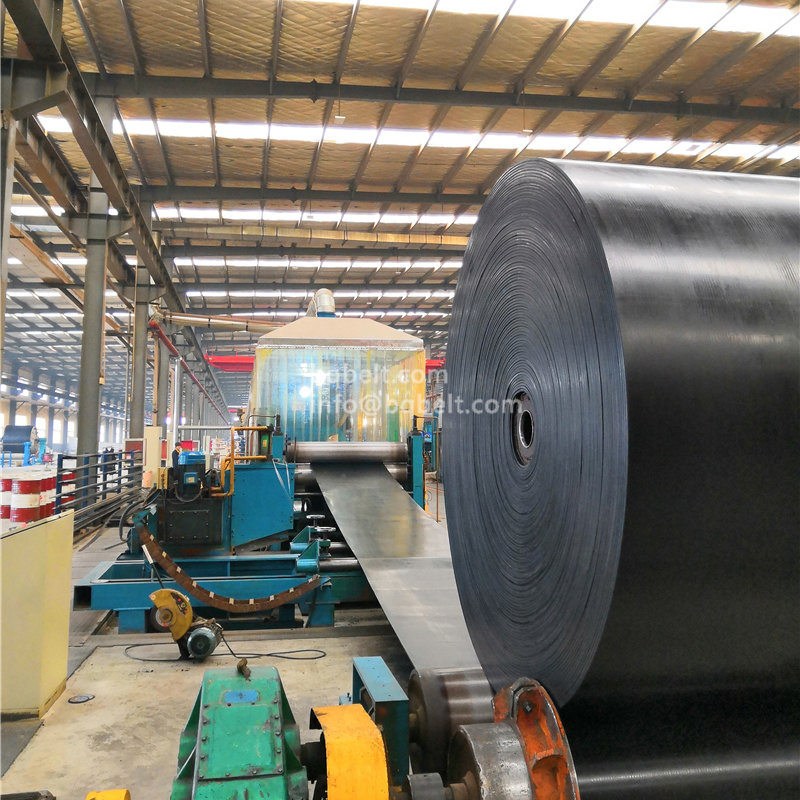

High temperature conveyor belt

After special coating and molding treatment, the carcass of this product has high adhesion. Under the normal working temperature below 180°C, the belt has low elongation and good wear resistance, and can withstand high temperature of 250°C for a short time. The belt is suitable for cement, metallurgy, steel and other industries.

Application:

1. Conveyor belts can be used in occasions with heat resistance requirements, but not suitable for high temperature materials. They cannot be used to transport powdered materials.

2. They can be used where abrasion resistance and moderate temperatures are required, or for transporting powdered materials at moderate temperatures.

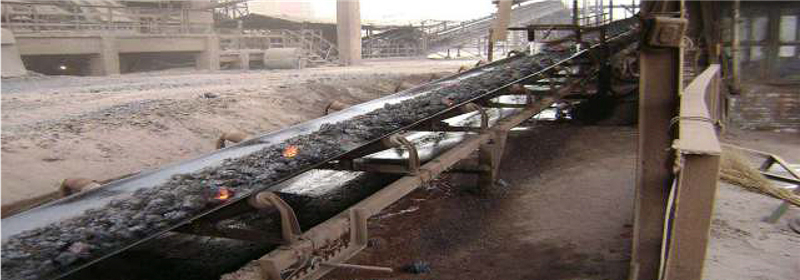

3. Can be used in high temperature and high wear resistance applications, such as sintering and cement clinker.

4. They can be used in high temperature and high wear resistance applications, such as sinter and cement clinker.

Basic technical indicators

Item		Class
		T1	T2	T3	T4
		Test temperature
		≤100℃	≤125℃	≤150℃	≤175℃
		Change range allowed
Hardness	Difference before and after aging (IRHD)	+20	+20	±20	±20
Hardness	Maximum value after aging (IRHD)	85	85	85	85
Tensile Strength	Change rate of property / %	-25	-30	-40	-40
Tensile Strength	Minimum value after aging / MPa	12	10	5	5
Breaking Elongation	Change rate after aging / %	-50	-50	-55	-55
Breaking Elongation	Minimum value after aging / %	200	200	180	180

DIN 22102 grade rubber cover

type	standard	Minimum tensile strength .MPa	minimum ultimate elongation .%	maximum wear .mm	density/cm	basic material	hardness °Sh	temperature range °C
heat resistant belt
HEAT	ISO 4195	15	400	150	1.13	SBR	60±5	-20 to +150
HHEAT	MF/H-T1*	15	400	150	1.13	SBR	60±5	-20 to +150
HHEAT	MF/H-T2*	10	400	200	1.07	EPDM	60±5	-20 to +150
HHEAT	MF/H-T3*	10	400	200	1.07	EPDM	60±5	-20 to +200
