TD75 type idler series

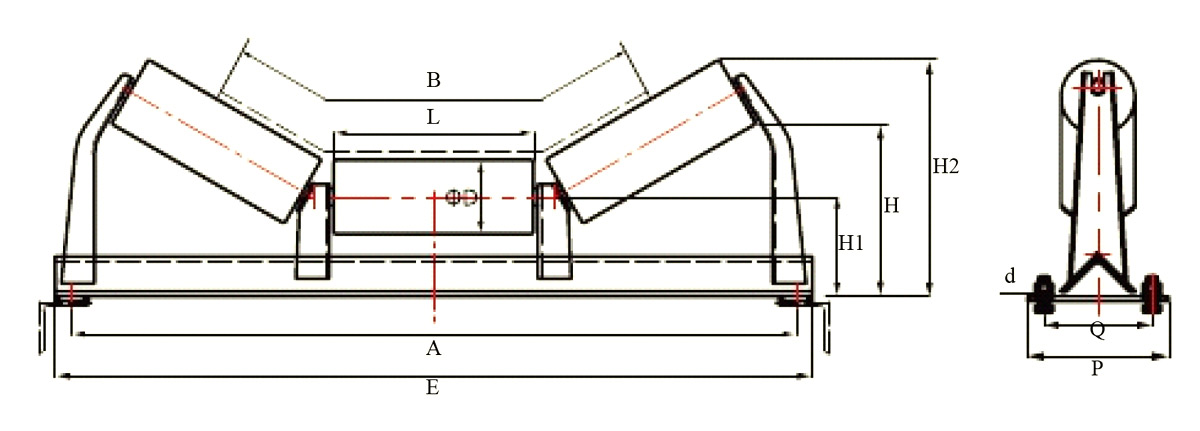

Carrier trough idler
|
Belt width
|
Drawing NO.
|
Roller
|
Bearing No
|
A
|
E
|
H
|
H1
|
H2
|
P
|
Q
|
d
|
Bracket Thickness
|
Bottom Bracket
Thickness
|
Angle No.
|
（KG） Bracket Weight
|
|
D
|
e L
|
|
500
|
TD1C1
|
89
|
190
|
204
|
720
|
760
|
210
|
125.5
|
266
|
170
|
130
|
M12
|
3.0
|
6.0
|
63*63*6
|
6.73
|
|
650
|
TD2C1
|
89
|
240
|
204
|
870
|
910
|
230
|
125.5
|
291
|
170
|
130
|
M12
|
3.0
|
6.0
|
63*63*6
|
7.94
|
|
800
|
TD3C1
|
89
|
305
|
204
|
1070
|
1110
|
240
|
125.5
|
323
|
170
|
130
|
M12
|
3.0
|
6.0
|
63*63*6
|
9.13
|
|
1000
|
TD4C1
|
108
|
375
|
305
|
1300
|
1350
|
300
|
156
|
400
|
220
|
170
|
M16
|
4.0
|
8.0
|
75*75*8
|
17.84
|
|
1200
|
TD5C1
|
108
|
455
|
305
|
1550
|
1610
|
330
|
176
|
460
|
260
|
200
|
M16
|
4.0
|
8.0
|
75*75*8
|
27.3
|
|
1400
|
TD6C1
|
108
|
525
|
305
|
1750
|
1810
|
350
|
176
|
495
|
260
|
200
|
M16
|
5.0
|
10.0
|
100*100*8
|
30
|

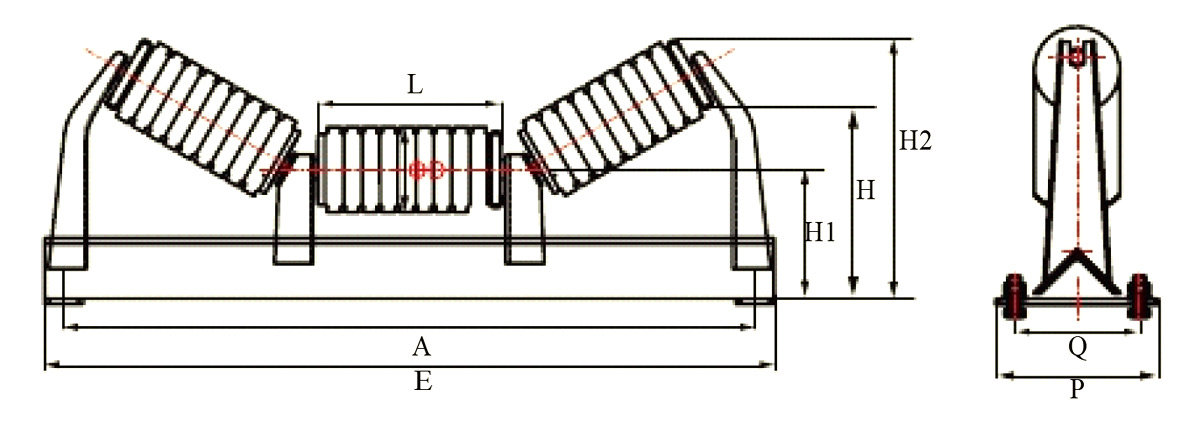

Rubber ring cushion cushion cushion cushion idler
