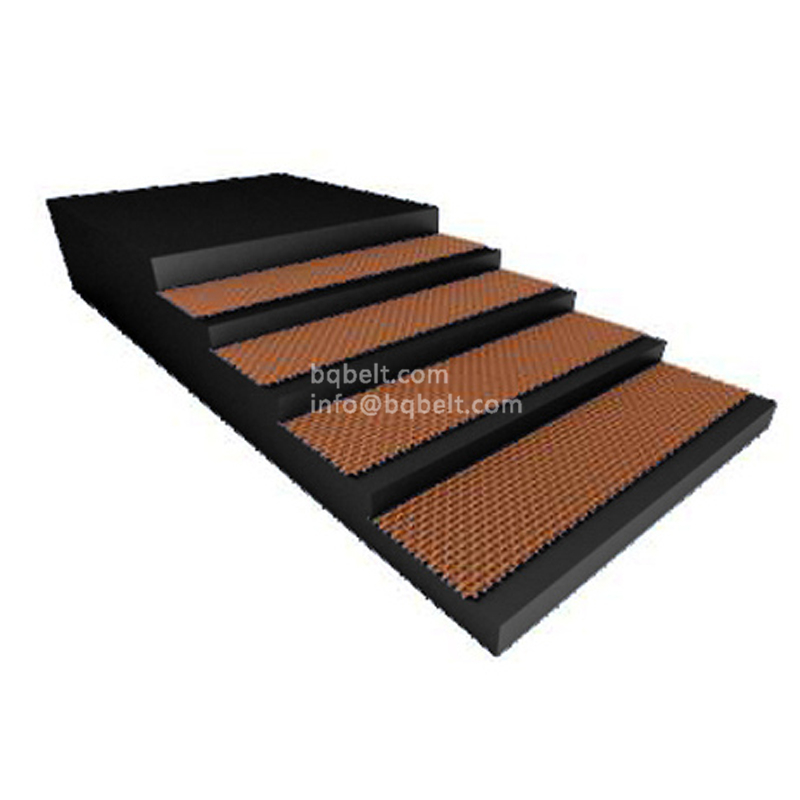

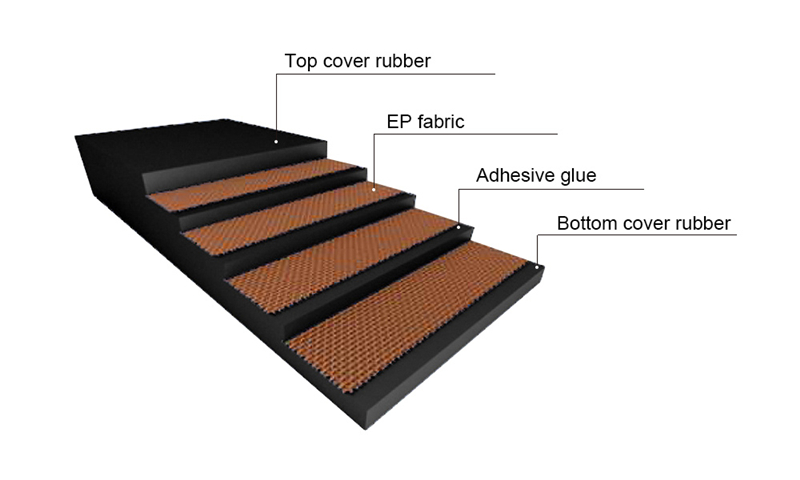

Polyester fabric conveyor belt is also known as EP belt, its skeleton is composed of radial polyester knitted polyester canvas and weft polyamide. They are characterized by low radial elongation, excellent groove forming ability and good water resistance. Their strength is not diminished by moisture. In addition, they do not mold and have a high initial modulus.

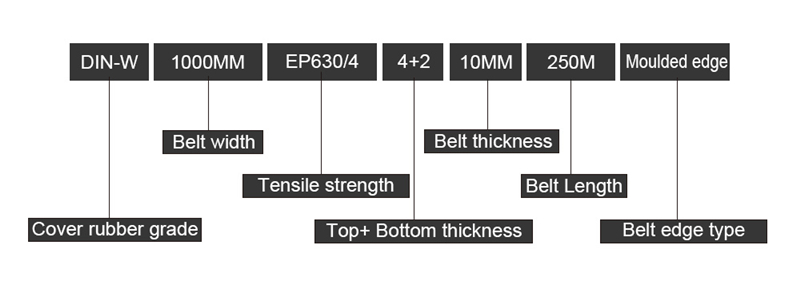

Specifications and technical data of multi-layer polyester conveyor belt
|
Fabric type
|
Fabric structure
|
Fabric specs
|
Ply thickness
(mm/p)
|
Stiength series
|
Cover thickness
|
Width
|
Length
|
|
Warp
|
weft
|
2Ply
|
3Ply
|
4Ply
|
5Ply
|
6Ply
|
Upper
|
Lower
|
Polyester
(EP)
|
Polyester
(EP)
|
Polyamine
(P)
|
EP-80
|
0.60
|
160
|
240
|
320
|
400
|
480
|
1.5-12
|
0-4.5
|
400-2500
|
≤300
|
|
EP-100
|
0.75
|
200
|
300
|
400
|
500
|
600
|
500-2500
|
|
EP-150
|
1.00
|
300
|
450
|
600
|
750
|
900
|
|
EP-200
|
1.10
|
400
|
600
|
800
|
1000
|
1200
|
|
EP-250
|
1.25
|
500
|
750
|
1000
|
1250
|
1500
|
|
EP-300
|
1.35
|
600
|
900
|
1200
|
1500
|
1800
|
|
EP-350
|
1.45
|
-
|
1050
|
1400
|
1750
|
2100
|
800-2500
|
|
EP-400
|
1.55
|
-
|
-
|
1600
|
2000
|
2400
|
|
EP-450
|
1.70
|
-
|
-
|
2000
|
2500
|
3000
|
1000-2500
|
Cover rubber grade DIN 22102
|
Type
|
Standard
|
Tensile
Strength
min.
MPa
|
Ultimate
elongation
min.
%
|
Abrasion
max.
mm
|
Density
g/cm
|
Basic
material
|
Hardness
°Sh
|
Tenperature
range
°C
|
|
GENERAL PURPOSE BELTS
|
|
P
|
MF/H-13*
|
10
|
300
|
250
|
1.26
|
SBR
|
60±5
|
-45 to +60
|
|
N
|
DIN 22102 Z
ISO 10247 L
BS10247 D
|
17
|
400
|
150
|
1.13
|
SBR
|
60±5
|
-45 to +60
|
|
W
|
DIN 22102 W
ISO 10247 D
|
18
|
400
|
90
|
1.12
|
NR/BR
|
60±5
|
-60 to +60
|
|
Y
|
DIN 22102 Y
|
20
|
400
|
150
|
1.13
|
IR/SBR
|
60±5
|
-45 to +60
|
|
X
|
DIN 22102 X
ISO 10247 H
BS 490 M 24
|
25
|
450
|
120
|
1.11
|
NR
|
60±5
|
-45 to +60
|
|
Z
|
DIN 22102 Z
|
15
|
350
|
250
|
1.15
|
SBR
|
60±5
|
-20 to +60
|
|
HEAT RESISTANT BELTS
|
|
HEAT
|
ISO 4195
|
15
|
400
|
150
|
1.13
|
SBR
|
60±5
|
-20 to +150
|
|
HHEAT
|
MF/H-T1*
|
10
|
400
|
200
|
1.07
|
EPDM
|
60±5
|
-20 to +125
|
